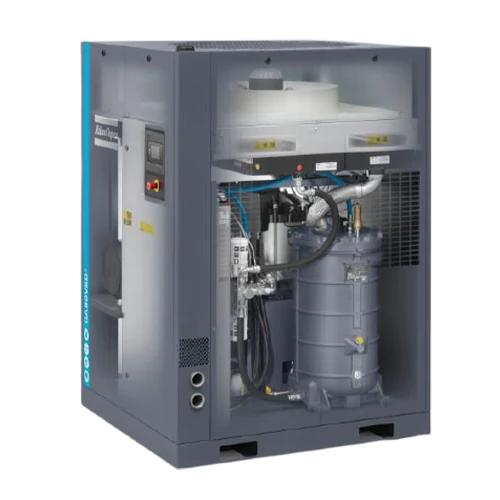

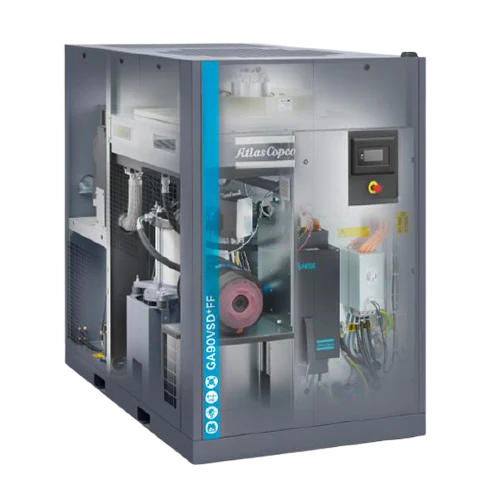

The Atlas Copco GA 90 VSD+ FF is a 90 kW oil-injected rotary screw compressor equipped with Variable Speed Drive technology and an integrated refrigerant dryer. Designed for demanding industrial applications, it offers a capacity range of 49 to 305 l/s at pressures from 5 to 12.75 bar, achieving average energy savings of up to 50% compared to fixed-speed models.
The Atlas Copco GA 90 VSD+ FF is a 90 kW oil-injected rotary screw compressor featuring an integrated Full Feature refrigerant dryer and Variable Speed Drive Plus technology. Free air delivery varies from 49 to 305 l/s (103 to 646 CFM) across a working pressure range of 5 to 12.75 bar, catering to the kind of variable industrial demand where a fixed-speed machine would waste a considerable amount of energy during operation.
The VSD+ system adjusts motor speed in real time to match actual air demand. Atlas Copco cites average energy savings of up to 50% compared to fixed-speed models, verified by an independent energy audit agency. The machine starts and stops under full system pressure with no need to unload, and start-up current penalties are eliminated. Running at a lower average system pressure also reduces leakage losses across the network.
The drive train is centred around Atlas Copco’s in-house designed Interior Permanent Magnet motor, rated to IE5 efficiency standards, oil cooled, and sealed to IP66. The Neos inverter, also designed in-house, exceeds IES2 requirements for power drive efficiency. Together, they form a fully enclosed, maintenance-free drive system with no couplings, gears, or belts to service.
The integrated dryer operates on R410A refrigerant and achieves a pressure dew point of 3°C under reference conditions, complying with ISO 8573-1 air quality Class 3.4.4. Condensate is managed by an electronic no-loss drain with a manual bypass for power failure scenarios. The dryer is specifically sized for this compressor and monitored directly via the Elektronikon system.
The Elektronikon Touch controller has a 4.3-inch colour display, integrated SMARTLINK remote monitoring, dual pressure set points, weekly scheduling, and graphical service plan alerts. It is compatible with Atlas Copco’s Optimizer 4.0 for system-level management across multiple machines.
The upright VSD+ layout occupies significantly less floor space than a traditional horizontal machine of similar output. Up to 75% of electrical energy input can be recovered as hot air or hot water through Atlas Copco’s integrated energy recovery option, without affecting compressor performance.
Electrical supply is 415V/3-phase/50Hz. Compressed air connection is G 2″ 1/2. Dimensions: L 2179 x W 1300 x H 1968 mm. Weight: 1503 kg.
Capacity: 49 l/sec – 305 l/sec, 103 CFM – 646 CFM
Maximum Working Pressure: 5 bar – 12.75 bar
Noise Level: 74 dB(A)
Motor Rating: 90 kW
Electrical Supply: 415/3/50
Compressed Air Connection: G 2″ 1/2″
Dimensions: L 2179 x W 1300 x H 1968
Weight: 1503 kg
Condition: New
